Schematic Diagrams
›

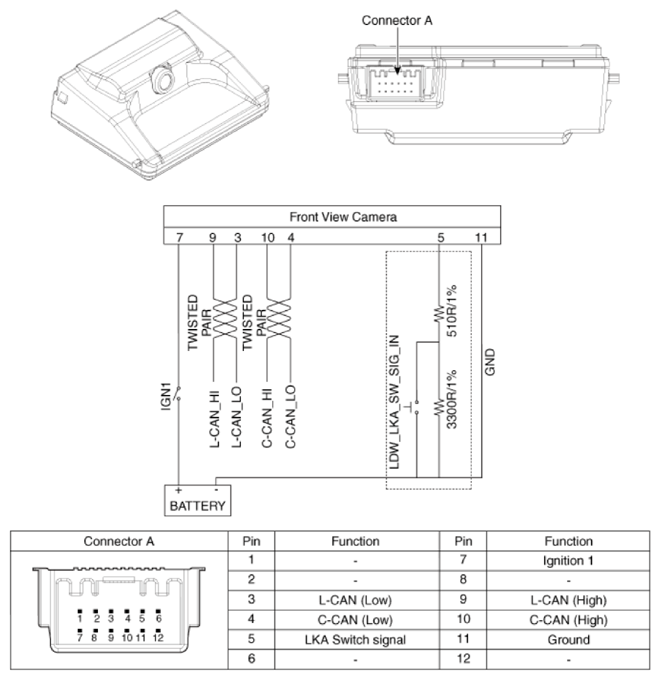

Circuit Diagram
Circuit Diagram
Fig 1: Front View Camera Unit Connector End View And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
