Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

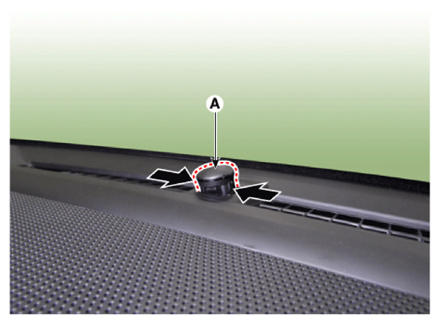

  2. Remove the photo sensor and auto light sensor (A) by pressing the locking pins.
    G13835821Courtesy of KIA MOTORS AMERICA, INC.

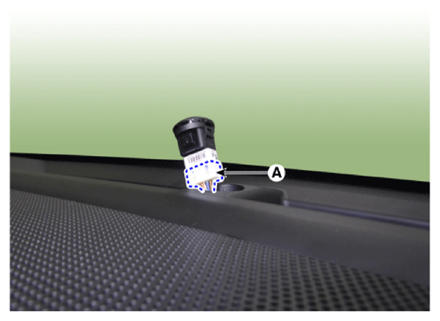

  3. Disconnect the photo sensor and auto light sensor connector (A).
    G13835822Courtesy of KIA MOTORS AMERICA, INC.
