Front Antenna

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to " Replacement  ")

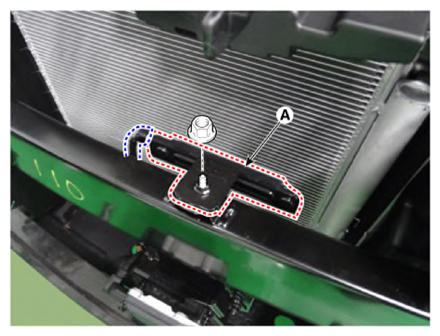

  3. Remove the front antenna (A) by loosening the nut after disconnecting the connector.
G13836314Courtesy of KIA MOTORS AMERICA, INC.
