Interior Antenna 2

  1. Disconnect the negative battery terminal.
  2. Remove the floor console assembly.

    (Refer to " Replacement  ")

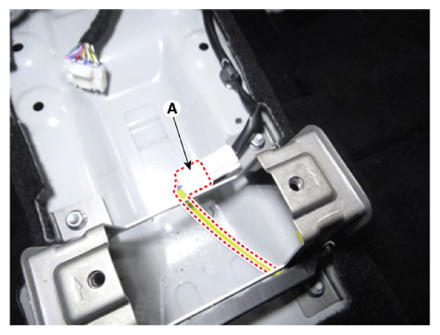

  3. Disconnect the interior antenna 2 connector (A).
    G13836310Courtesy of KIA MOTORS AMERICA, INC.

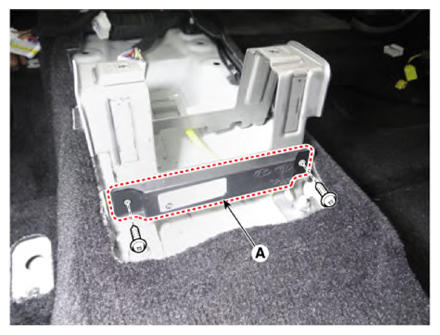

  4. Remove the interior antenna 2 (A) by loosening the mounting screws.
    G13836311Courtesy of KIA MOTORS AMERICA, INC.
