Repair Procedures: Removal: Buzzer

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to " Replacement  ")

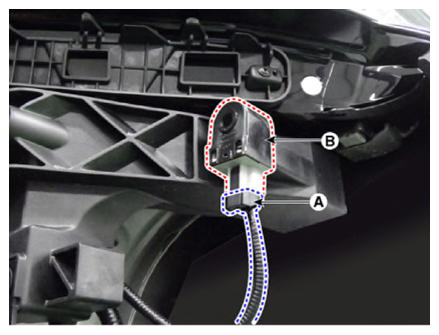

  3. Remove the buzzer (B) after disconnecting the connector (A).
    G13836302Courtesy of KIA MOTORS AMERICA, INC.
