Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Put on gloves to prevent hand injuries.
- Remove the floor console assembly.
(Refer to " Replacement ")

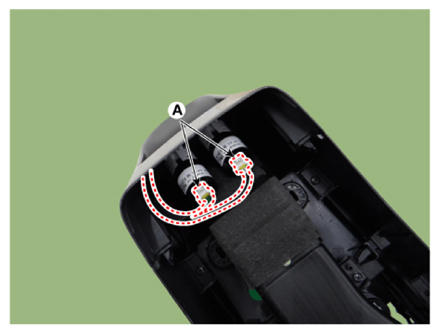

- Disconnect the connectors (A).

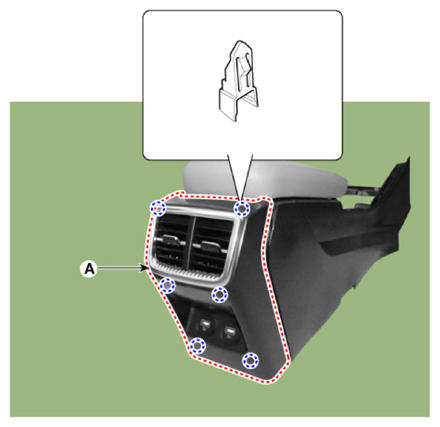

- Using a remover, remove the rear console cover (A).
- Install in the reverse order of removal.
Information
Replace any damaged clips (or pin-type retainers).
