Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

Remove the front seat assembly.
(Refer to " Replacement ")

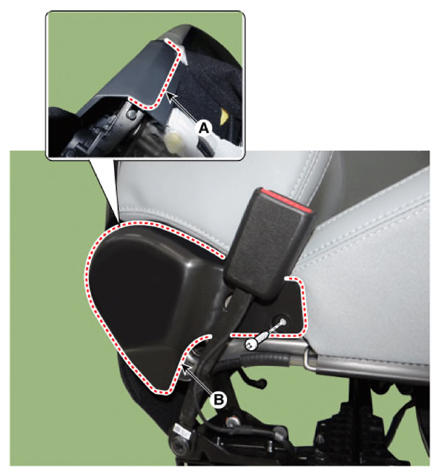

Remove the protector (A), loosen the mounting screw and remove the front seat inner shield cover (B).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
