Repair Procedures: Inspection

Remove the front seat back.
(Refer to " Replacement ")

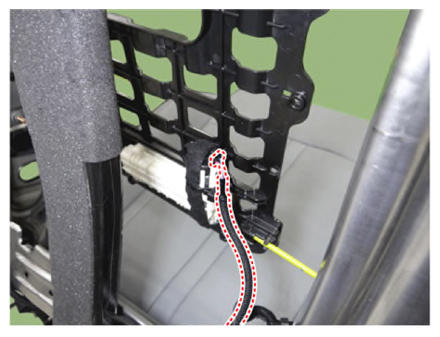

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
When the battery power is supplied to the motor connector, check the motor for smooth operation.

Courtesy of KIA MOTORS AMERICA, INC.
