Power Window Rear Switch

  1. Disconnect the negative battery terminal.
  2. Remove the rear door trim.

    (Refer to " Replacement  ")

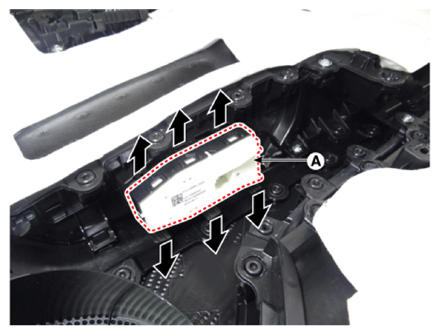

  3. Remove the power window rear switch (A) by pushing the holders in the direction of arrow.
G13836237Courtesy of KIA MOTORS AMERICA, INC.
