Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to " Replacement  ")

  3. Remove the crash pad garnish[LH].

    (Refer to " Replacement  " )

  4. Remove the crash pad lower garnish [LH] after loosening the mounting screws.
    G13835289Courtesy of KIA MOTORS AMERICA, INC.

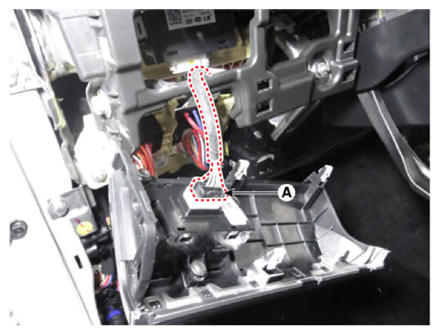

  5. Disconnect the crash pad lower garnish [LH] connector (A).
    G13835290Courtesy of KIA MOTORS AMERICA, INC.

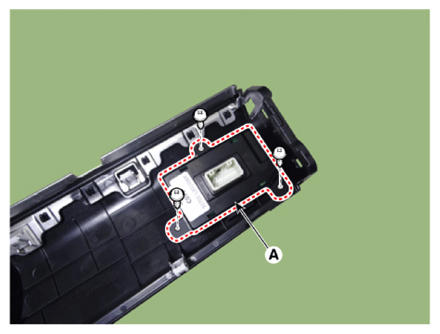

  6. Remove the side crash pad switch (A) after loosening the mounting screws.
G13835291Courtesy of KIA MOTORS AMERICA, INC.
