Kia
›
2021
›
K5 EX
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Electronic Stability Control (ESC) System
›
Rear Wheel Speed Sensor
›
Components And Components Location
›
Components
›
[AWD]
Components And Components Location: Components: [AWD]

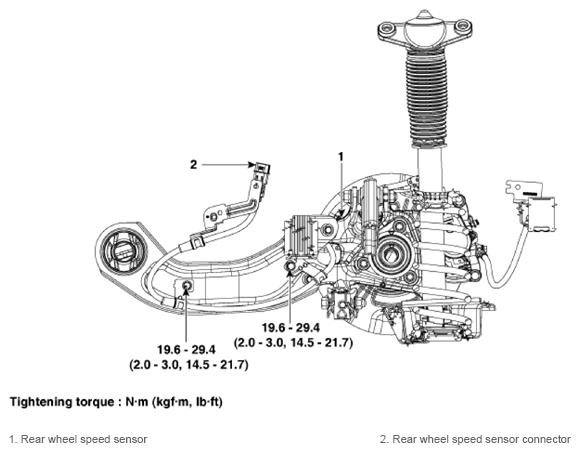

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification (AWD)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
