Components And Components Location: Components

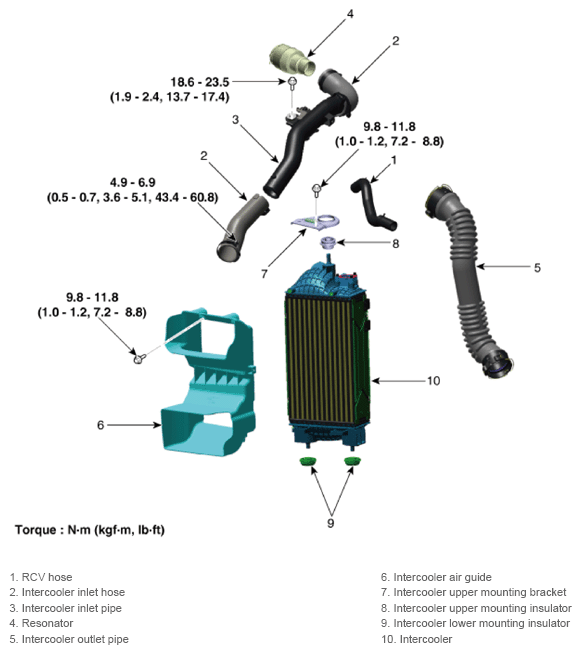

Fig 1: Intercooler Components Location With Torque Specification
G13833561Courtesy of KIA MOTORS AMERICA, INC.
