CVVD Actuator
›
Components And Components Location
›
Component Location
Component Location

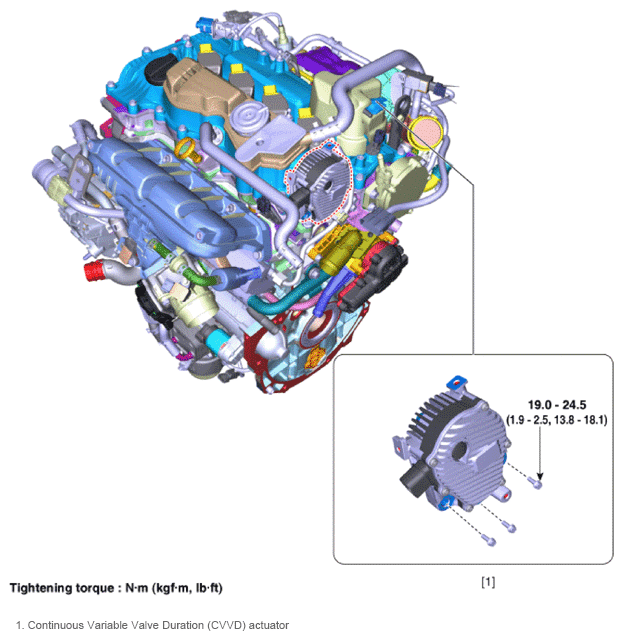

Fig 1: CVVD Actuator Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
