Connector And Terminal Function

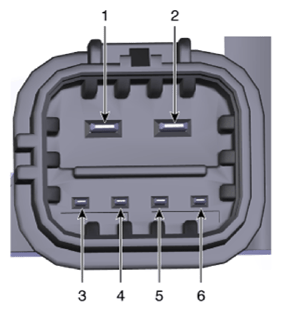

G13833887Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Battery power
2 Ground
3 -
4 CVVD fuse
5 CAN high
6 CAN low
