Camshaft Position Sensor (CMPS)
›
Schematic Diagrams
›

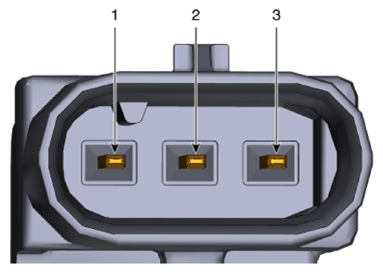

Connector And Terminal Function
Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
1
Power (5 V)
2
Ground
3
Signal
Courtesy of KIA MOTORS AMERICA, INC.
