Connector And Terminal Function

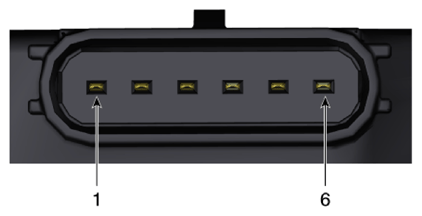

G13833910

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function
1	Motor (+)
2	Motor (-)
3	5V
4	TPS 2
5	Ground
6	TPS 1
