Repair Procedures: Installation

Install in the reverse order of removal.

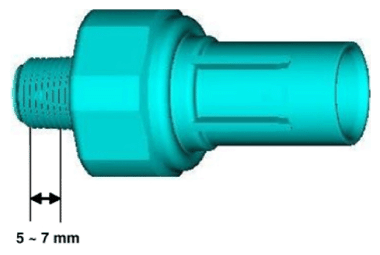

NOTE: When installing the oil pressure switch, apply sealant to the thread.
Specified sealant : TB 2403
Thickness : 0.2 - 0.4 mm (0.008 - 0.016 in.)

Courtesy of KIA MOTORS AMERICA, INC.
