Engine Control System - 1.6L
›
Variable Force Solenoid (VFS)
›
Schematic Diagrams
›
Connector And Terminal Function

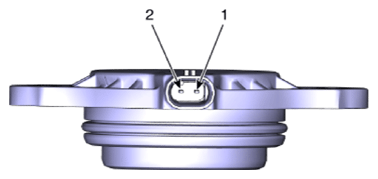

Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
1
Power
2
Ground
Courtesy of KIA MOTORS AMERICA, INC.
