Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to " RELEASE RESIDUAL PRESSURE ")
Remove the intake manifold.
(Refer to "Removal And Installation ")

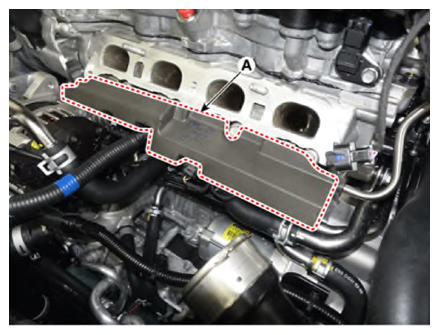

Remove the injector foam (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the high pressure fuel pipe.
(Refer to " High Pressure Fuel Pipe [High Pressure Fuel Pump ↔ Delivery Pipe] ")

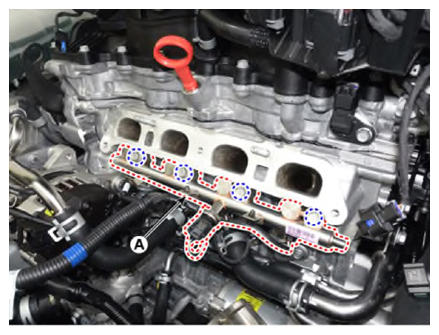

Remove the delivery pipe and injector (A) by removing the bolts.
Tightening torque:

24.5 - 27.5 N.m (2.5 - 2.8 kgf.m, 18.1 - 20.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

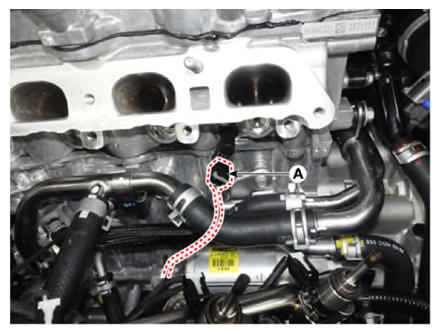

Disconnect the engine coolant temperature sensor #1 connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the engine coolant temperature sensor #2 connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

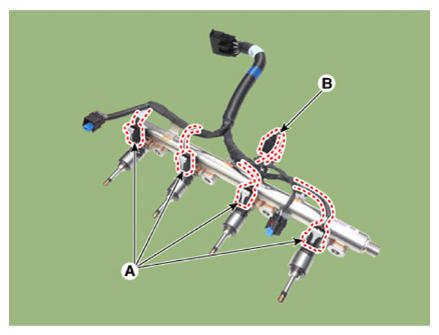

Disconnect the injector connectors (A) and rail pressure sensor connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

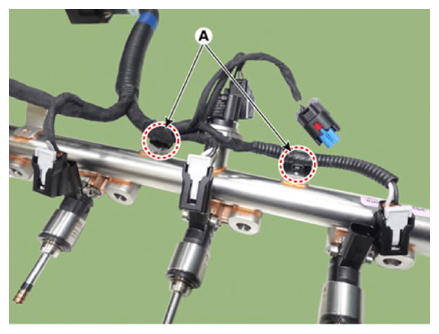

Remove the wiring fixing clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

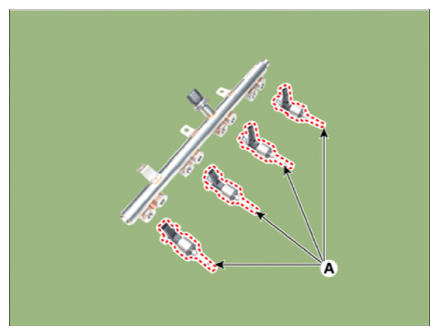

Remove the injector (A) from the delivery pipe.

Courtesy of KIA MOTORS AMERICA, INC.

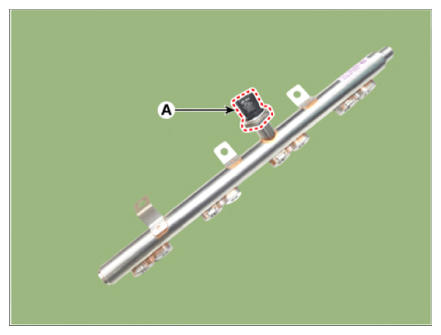

Remove the rail pressure sensor (A) from the delivery pipe.
Tightening torque:

29.5 - 32.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 Ib.ft)

Courtesy of KIA MOTORS AMERICA, INC.
