Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the rear wheel guard.
(Refer to " Replacement ")

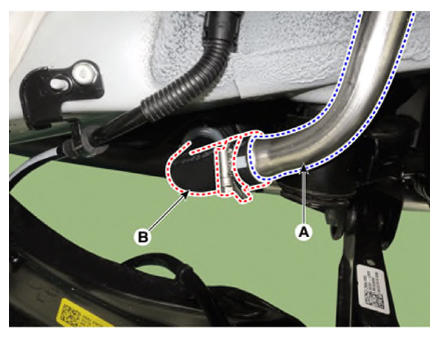

Separate the fuel filler hose (B) from the fuel filler pipe (A).

Courtesy of KIA MOTORS AMERICA, INC.

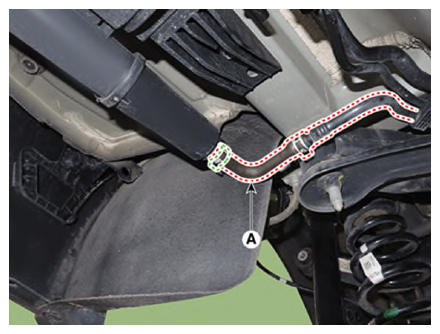

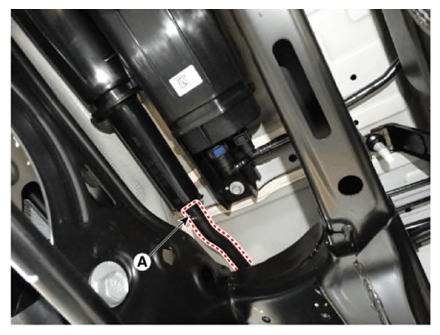

Separate the ventilation hose (A).
2WD

Courtesy of KIA MOTORS AMERICA, INC.

4WD

Courtesy of KIA MOTORS AMERICA, INC.

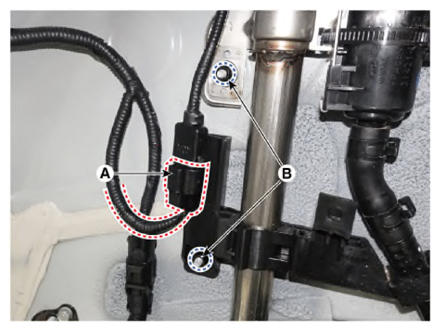

Remove the filler-neck assembly by removing the mounting nut (B) after separating the canister close valve connector (A).
Tightening torque:

7.9 -11.7 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.6 lb.ft)
