Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

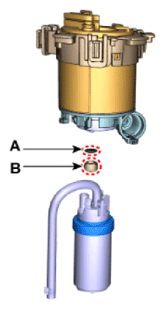

    • Be careful not to miss the O-ring (A) and spacer (B) when assembling the fuel pump.
      G13834092Courtesy of KIA MOTORS AMERICA, INC.

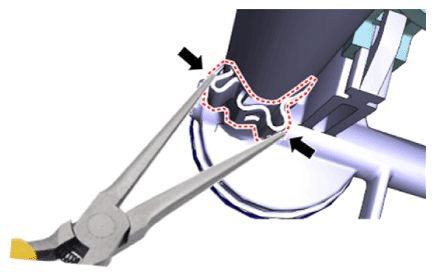

    • Install the clip firmly by using the tool.
      G13834093Courtesy of KIA MOTORS AMERICA, INC.
    • Be careful not to miss the O-ring (A) when assembling the plate.
      G13834094Courtesy of KIA MOTORS AMERICA, INC.
