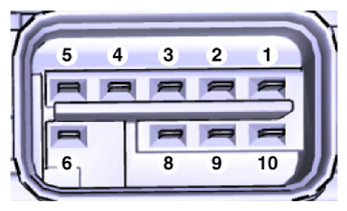

Connector and Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function	Pin	Function
1	Fuel sender (-)	6	Fuel sender (+)
2	Fuel pressure sensor signal	7	-
3	Fuel pressure sensor ground	8	Fuel pressure sensor (+)
4	Ground	9	CAN_H IGH
5	CAN_LOW	10	Battery (+)
