Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to " RELEASE RESIDUAL PRESSURE ")
Remove the rear seat cushion.
(Refer to " [Rear Seat Cushion Assembly] ")

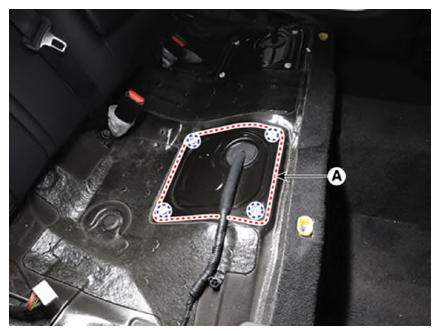

Remove the suction plate and sender service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

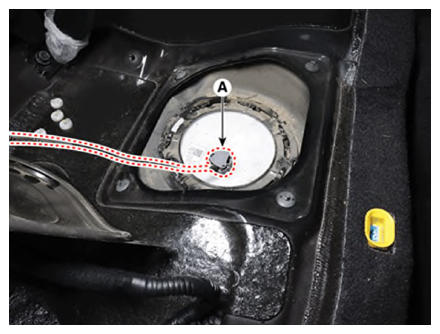

Disconnect the suction plate and sender assembly connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

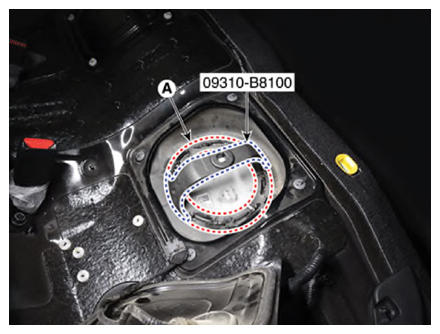

Remove the suction plate and sender assembly after removing the plate cover (A) by using a SST (09310- B8100).

Courtesy of KIA MOTORS AMERICA, INC.

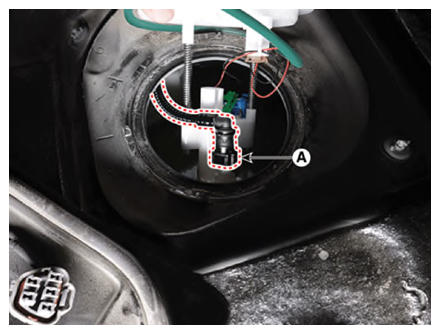

Disconnect the suction plate to fuel pump hose quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
