Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the evaporator core assembly.
(Refer to " Replacement ")

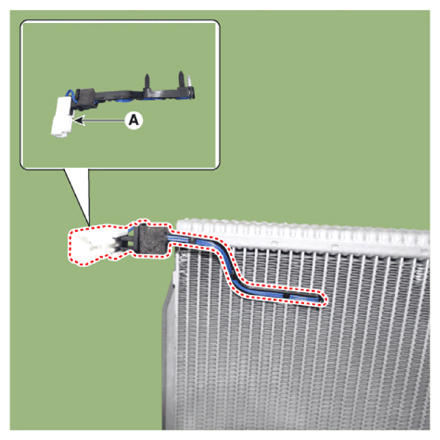

- Remove the evaporator temperature sensor (A) from the evaporator core.
- Install in the reverse order of removal.
