Circuit Diagram

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

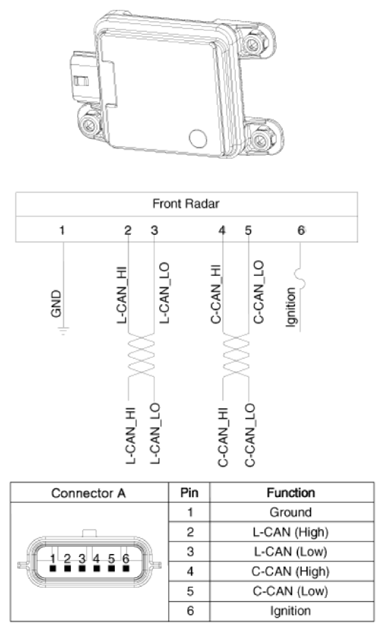

Fig 1: Front Radar Unit Connector End View And Terminal Description

Courtesy of KIA MOTORS AMERICA, INC.
