Multifunction Switch Inspection
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Remove the steering column upper and lower shrouds.
(Refer to " Replacement ")

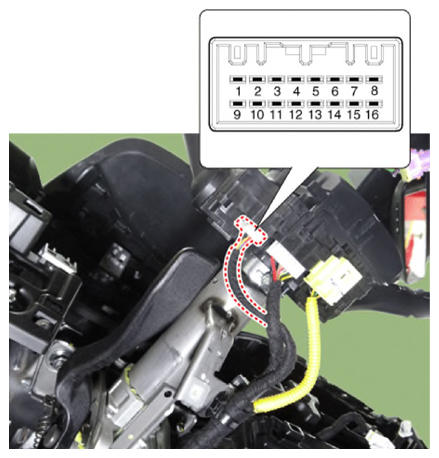

- Check for continuity between the terminals in each switch position as shown in the illustration below.
Switch Switch position Switch terminal Resistance (Ω, ±3.5%) Front wiper switch MIST 6-4 330 OFF ∞ INT (AUTO) 800 LOW 1800 HIGH 5700 Wiper intermittent volume Volume 1 3-4 330 Volume 2 690 Volume 3 1310 Volume 4 2610 Volume 5 7310 Fog lamp switch OFF 12-4 ∞ Front 910 Rear 2910 Turn signal switch (Left) OFF 14-4 ∞ Lanechange 910 Full turn 2910 Turn signal switch (Right) OFF 15-4 ∞ Lanechange 910 Full turn 2910 Dimmer & Passing switch OFF 13-4 ∞ Passing 910 Dimmer 2910 Light switch OFF 10-4 680 AUTO ∞ Tail lamp 1680 Lowbeam 5580
