Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative terminal.
CAUTION: After disconnecting the cables, wait at least 3 minutes.
Remove the crash pad lower panel.
(Refer to " Replacement ")

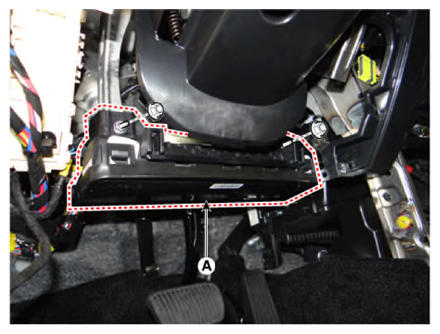

Remove the knee airbag module (A) by loosening the mounting nuts.
Tightening Torque: 0.7 ~ 1.1 kgf.m

Courtesy of KIA MOTORS AMERICA, INC.

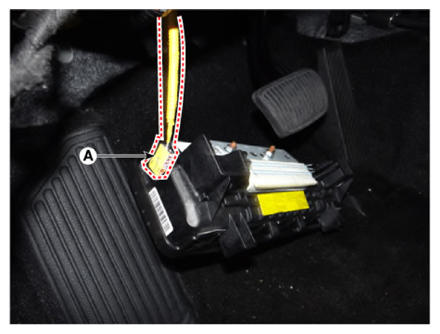

Disconnect the knee airbag connector (A) by pressing the lock pin.

Courtesy of KIA MOTORS AMERICA, INC.
