Repair Procedures: Adjustment
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the negative (-) batter
- Remove the crash pad lower panel.
(Refer to " Replacement ")
- Confirm the gap between stop lamp switch and bracket.

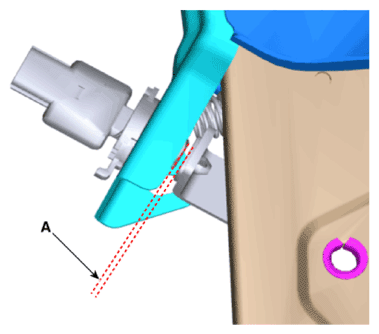

Stop lamp clearance (A) : 1.0 - 2.0 mm (0.04 - 0.08 in.)
- If the gap between stop lamp switch and bracket is not 1.0-2.0 mm (0.04-0.08 in), check the mounting clip and other part of around stop lamp.
- If there is normal, remove the stop lamp switch and then install again.
