Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the front door window glass.

    (Refer to " Replacement  ")

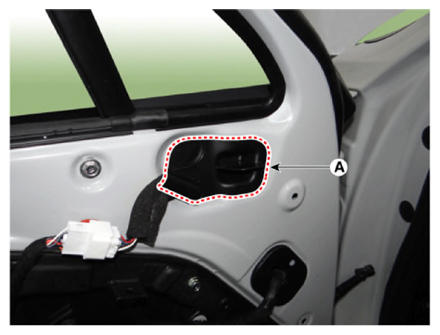

  2. Using a screwdriver or remover, remove the outside rear view mirror cover (A).
    G13835374Courtesy of KIA MOTORS AMERICA, INC.

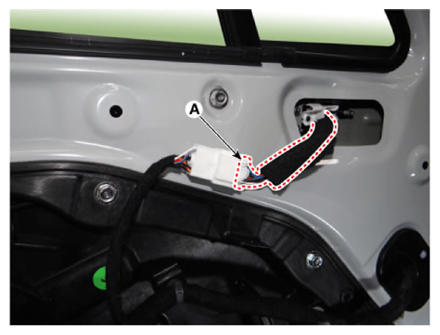

  3. Separate the outside mirror connector (A) and remove the mounting clip.
    G13835375Courtesy of KIA MOTORS AMERICA, INC.

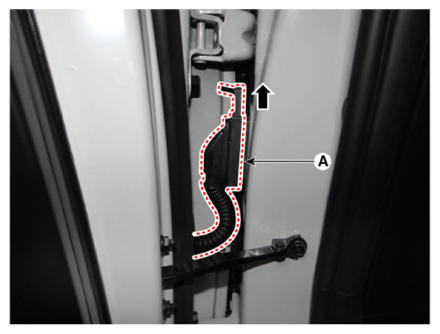

  4. Release the locking pin in the direction of the arrow and remove the front door main wiring connector (A).
    G13835376Courtesy of KIA MOTORS AMERICA, INC.

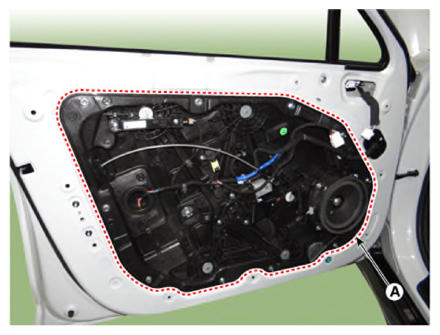

  5. Loosen the mounting bolts and remove the front door module (A).

    Tightening torque:

    7.8 -11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

    G13835377Courtesy of KIA MOTORS AMERICA, INC.

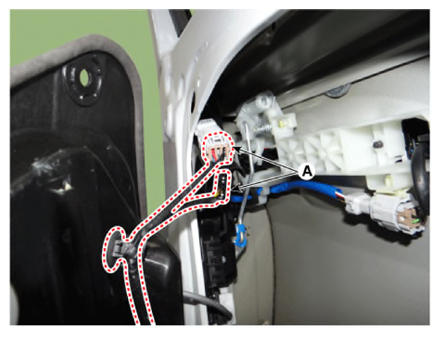

  6. Disconnect the front door latch connectors (A).
    G13835378Courtesy of KIA MOTORS AMERICA, INC.

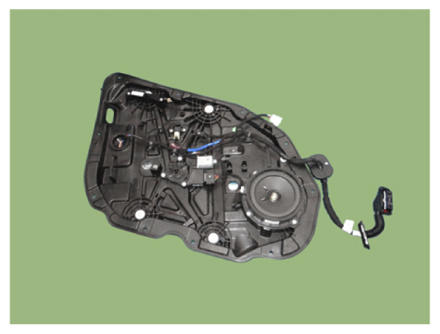

  7. Disconnect the connectors and front door module wiring harness.
    G13835379Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the front speaker.

    (Refer to " Removal  ")

  9. Remove the front power window motor.

    (Refer to " Removal  ")

  10. Install in the reverse order of removal.

    Information

    • Make sure connectors are connected properly and each rod is connected securely.
    • Make sure the door locks/unlocks and opens/closes properly.
