Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  1. Disconnect the negative battery terminal.

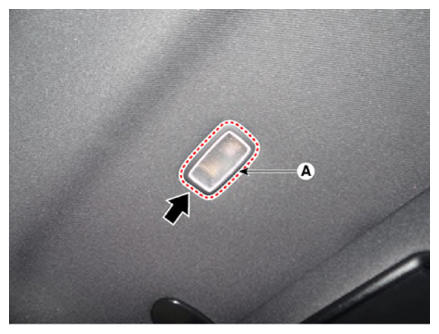

  2. Remove the vanity lamp (A) by using a flat-tip screwdriver or remover.
    G13836155Courtesy of KIA MOTORS AMERICA, INC.

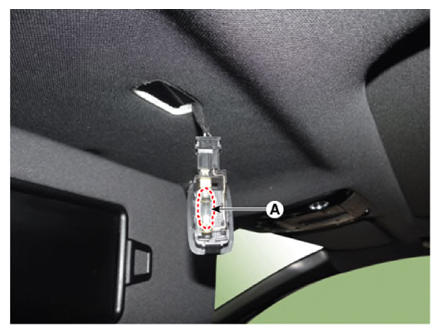

  3. Replace the vanity lamp bulb (A).
    G13836156Courtesy of KIA MOTORS AMERICA, INC.
