Repair Procedures: Replacement
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the main crash pad assembly.
(Refer to " Replacement ")

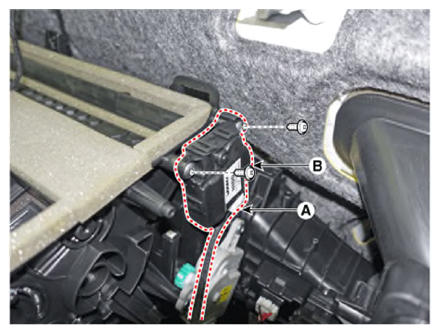

- Remove the auto defogging actuator (B) by loosening the screws after disconnecting the connector (A).
- Install in the reverse order of removal.
