Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the coupling assembly.
(Refer to " Removal ")

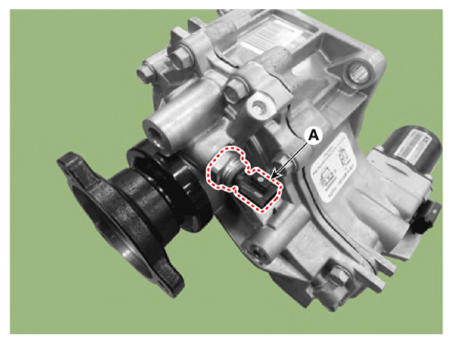

Remove the pressure sensor (A).
Tightening torque:

10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Keep going horizontal state to prevent leaks during remove the pressure sensor.
