Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to " Removal and Installation ")

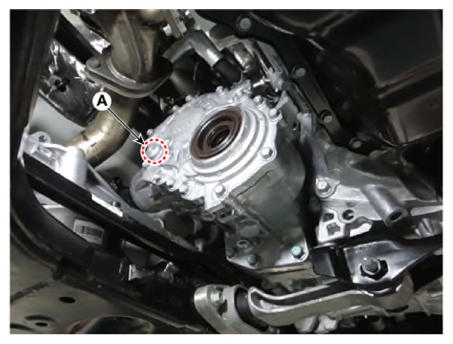

Remove the oil filler plug (A).

Courtesy of KIA MOTORS AMERICA, INC.

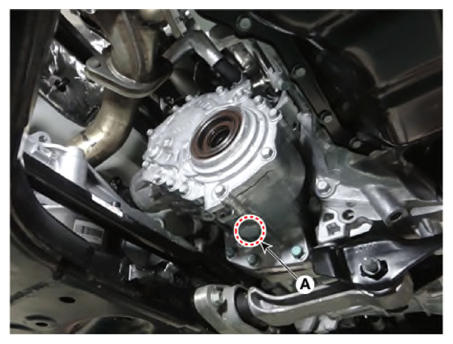

Remove the drain plug (A) and wait for over 10 minutes until the oil is drained enough and then reinstall the drain plug.
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil drain plug gasket must be replaced with a new one (do not reuse).
After checking the oil level, refill the with oil through the filler plug hole.
Specification:

Hypoid gear oil API GL-5, SAE 75W/85 (SK HCT-5 75W/85 or equivalent)

Capacity:

0.65 * (0.17 U.S.gal, 0.69 U.S.qt, 0.57 lmp, qt)
Install the oil filler plug (A).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with a new one (do not reuse).
