Battery Identification For CLARIOS® Brand (PS714)

BATTERY IDENTIFICATION FOR CLARIOS® BRAND

TECHNICAL SERVICE BULLETIN

SERVICE INFORMATION

This Pitstop provides information regarding battery identification, for Clarios® brand equipped models listed below. Some Batteries may be requested for analysis, so dealers must comply with the Warranty Parts Retention Requirements (Section 13.2) of the Kia Service Policies and Procedures Manual. Failure to return the requested Battery will result in a claim chargeback. Refer to the battery identification details below for Clarios®. The RO number needs to be clearly written on the battery case using a permanent marker or other marking device and the battery kept in the warranty part retention area  .

BATTERY IDENTIFICATION

1. Vehicle production dates.

   Model	Model Year	Affected Date Range
   Forte (BDm)(1)	2021 - 2022	Produced after April 8, 2021
   K5 (DL3a)		Produced after May 15, 2020
   Rio (SC)		Produced after April 8, 2021
   Sorento (MQ4a)		Produced after September 30, 2020
   Telluride (ON)		Produced after June 17, 2020
   (1) Except GT models with 1.6L-T Gamma engines.

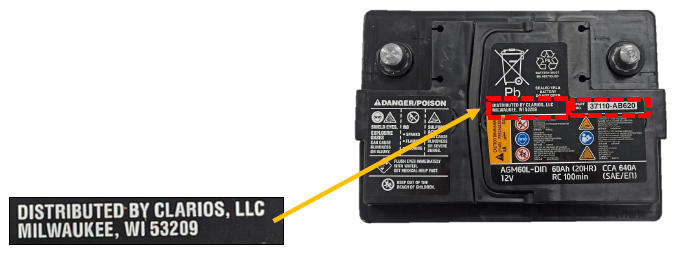

2. Battery part number and label.

   Model	Part Number
   BDm 2.0	37110-AB620
   SC
   ON	37110-C2802
   DL3a	37110-3Q700
   MQ4a
