Repair Procedures: Removal

Disconnect the negative battery terminal.
CAUTION: After disconnecting the cables, wait at least 3 minutes.
Remove the front impact sensor (A) by loosening the bolt after disconnecting the connector (B).
Tightening torque:

8.8 -10.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

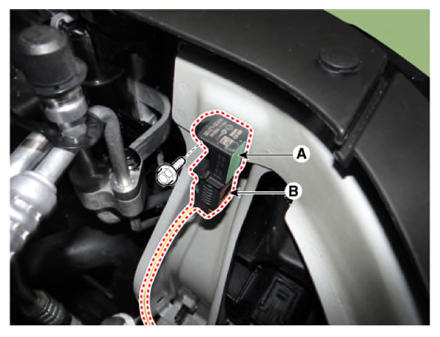

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

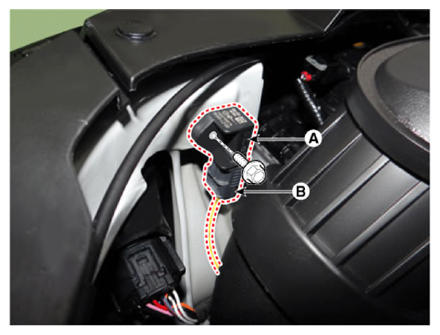

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
