Repair Procedures: Installation

NOTE:

Install the component with the specified torque.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

Install in the reverse order of removal.

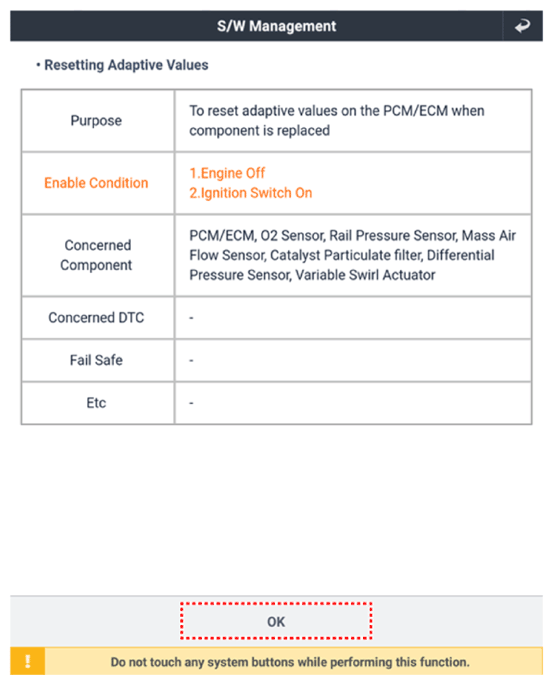

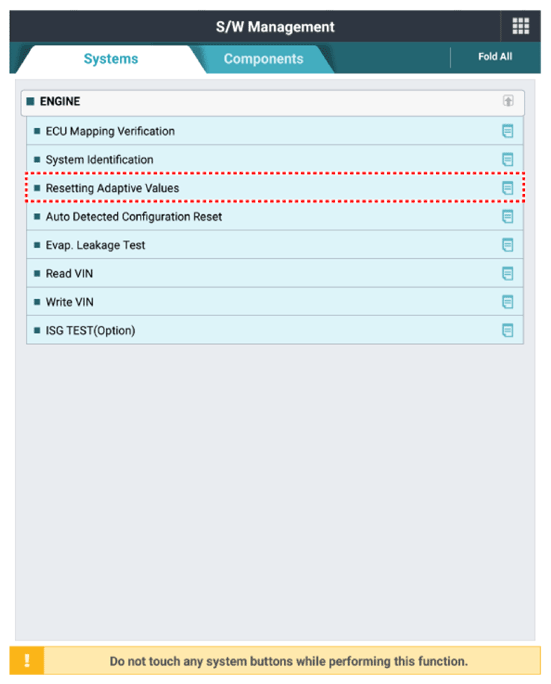

Reset the ECM adaptive values after replacing the RPS.
