Ignition System Inspection
| Inspection Procedure |
|---|
| ■Ignition coil Inspection 1. Refer to "Shop Manual" and visually and/or physically inspect following conditions ; - Damage, cracks, carbon and flashover. - Poor connection or damaged harness. |
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Ignition coil connector | 4 (power) | Chassis ground | - | Fig.1 |
| Ignition coil connector | 2 (control) | ||||

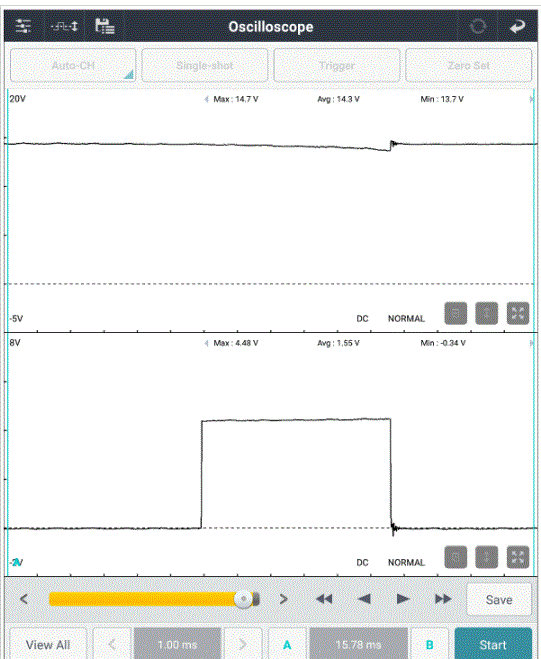

Fig.1) Normal waveforms of ignition at engine idle
Good
- • Go to "Spark Plug Inspection " procedure.
No Good
- • Repair as necessary and go toVerification Of Repair procedure.
