Component Inspection

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Vehicle S/W Management" of concerned component with KDS.	Fig.1 to 5

G13810977

Courtesy of KIA MOTORS AMERICA, INC.

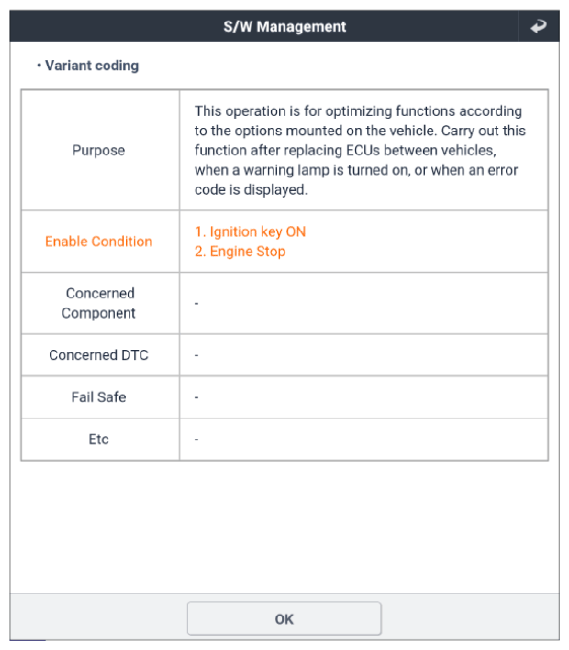

G13810978

Courtesy of KIA MOTORS AMERICA, INC.

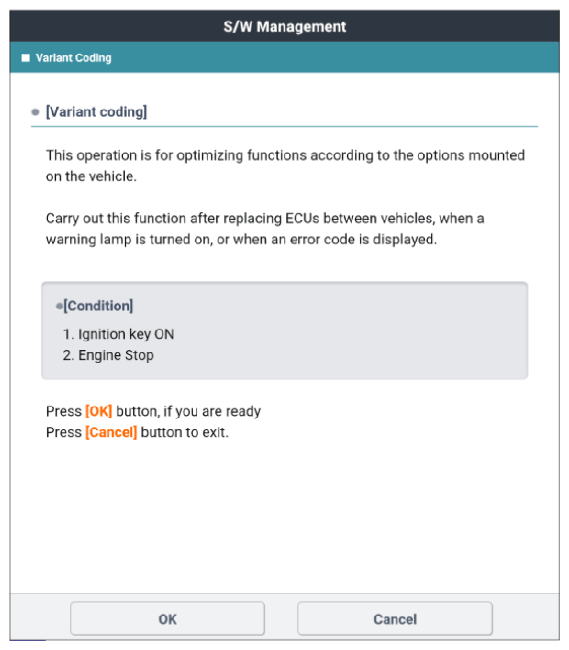

G13810979

Courtesy of KIA MOTORS AMERICA, INC.

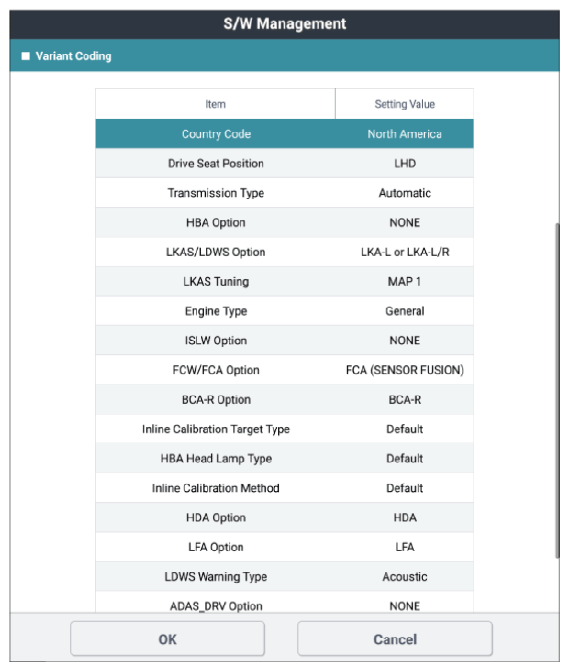

G13810980

Courtesy of KIA MOTORS AMERICA, INC.

G13810981

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be caused by not performing variant coding after MFC ECU replacement. Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the MFC ECU and Go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing MFC ECU, perform following "System Inspection " procedures
