Front View Camera

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - " FRONT BUMPER ASSEMBLY  ")

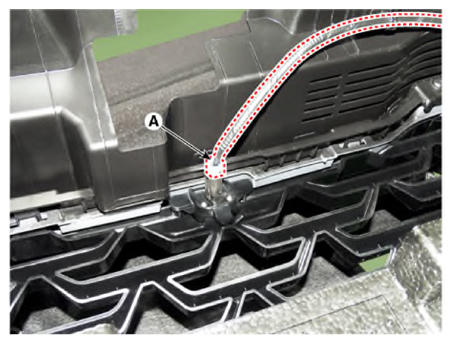

  3. Disconnect the front view camera connector (A).
    G13836731Courtesy of KIA MOTORS AMERICA, INC.

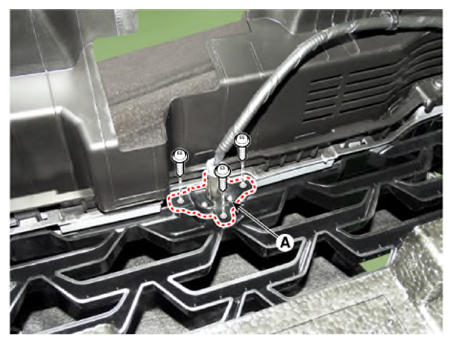

  4. Remove the front view camera (A) after loosening the mounting screws.
    G13836732Courtesy of KIA MOTORS AMERICA, INC.
