Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Information
If the passenger airbag module has been deployed, replace the damaged crash pad.
- Remove the main crash pad assembly.
(Refer to " Replacement ")

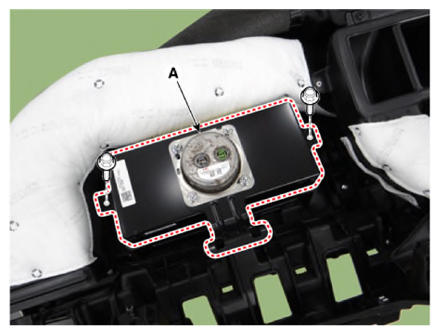

- Remove the passenger airbag module (A) after loosening the bolts.
Tightening torque:
3.9 - 5.8 N.m (0.4 - 0.6 kgf.m, 2.8 - 4.3 lb.ft, 34.7 - 52.0 lb.in)
