Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) battery terminal.
Remove the front wheel and tire.
(Refer to " Removal ")

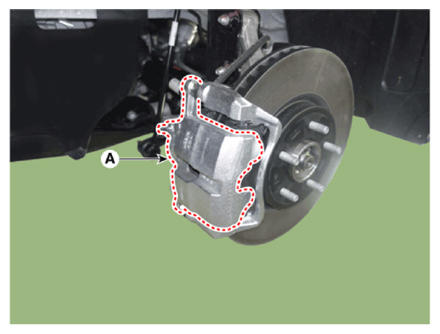

Loosen the guide rod bolt and then pivot the caliper body (A) up out of the way.
Tightening torque:

21.6-31.4 N.m(2.2 -3.2 kgf.m, 15.9-23.1 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

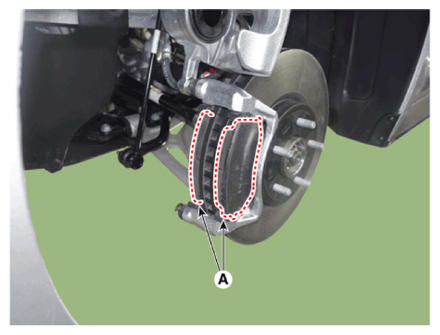

Remove the brake pad (A).

Courtesy of KIA MOTORS AMERICA, INC.

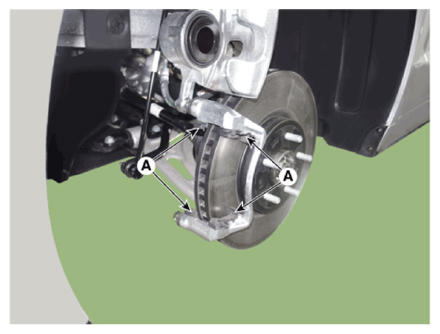

Remove the pad retainer (A).

Courtesy of KIA MOTORS AMERICA, INC.

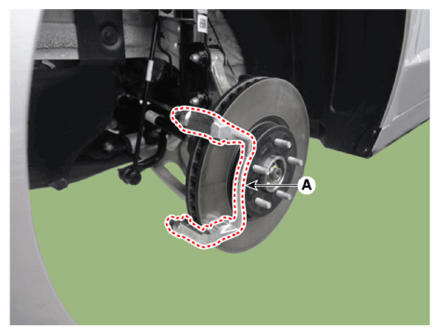

Remove the caliper carrier (A) by loosening the caliper mounting bolts.
Tightening torque:

98.1 -117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Caliper carrier mounting bolts must use the new one.
- Fix the caliper assembly with a wire.

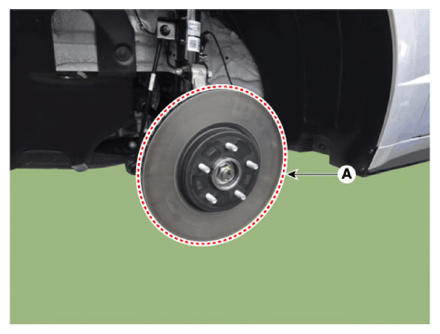

Remove the front brake disc (A) by loosening the screws.
Tightening torque:

4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)
