Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to " Replacement ")

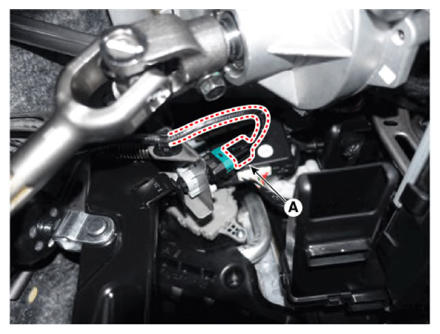

Disconnect the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

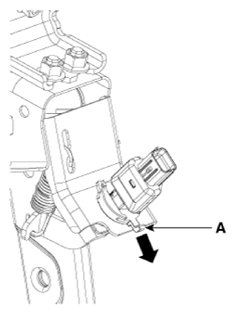

Pull the locking plate (A) as indicated by the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

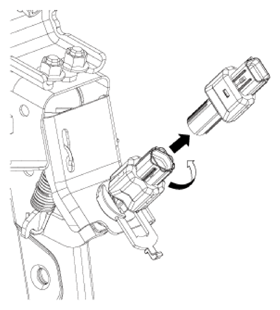

Turn stop lamp switch (A) 45° counterclockwise and remove it.

Courtesy of KIA MOTORS AMERICA, INC.
Inspect a removed stop lamp switch along the below procedures.
1. Confirm a normal connection with terminal part
A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.

Courtesy of KIA MOTORS AMERICA, INC.
