Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the front door outside handle.
(Refer to " Replacement ")

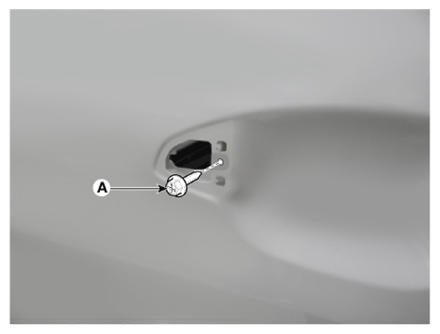

Loosen the front door outside handle base mounting bolt.
Tightening torque:

4.9 - 5.9 Nm (0.4 - 0.6 kgfm, 2.9 - 4.3 lbft, 34.7 - 52.1 lbin)

Courtesy of KIA MOTORS AMERICA, INC.

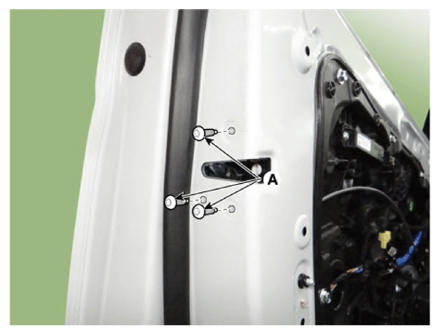

Loosen the front door latch mounting screws (A).
Tightening torque:

6.9 -10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 8.0 lb.ft, 60.8 - 95.5 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

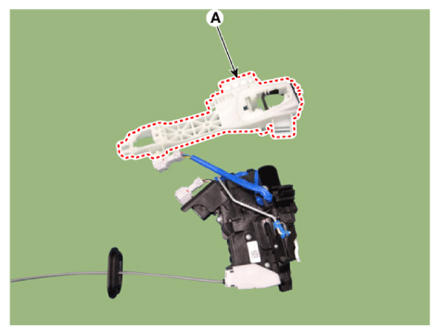

Remove the front door latch assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

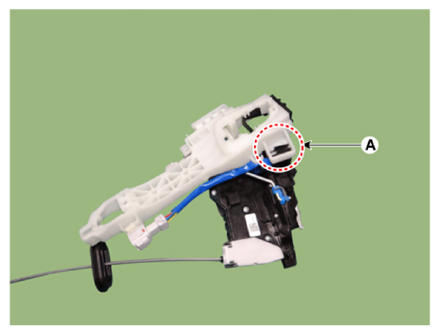

Open the cover to remove the front door outside handle base by pressing the locking pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

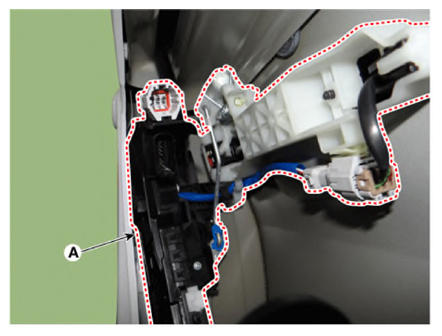

Loosen the front door latch connector clip and remove the front door outside handle base (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
