Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

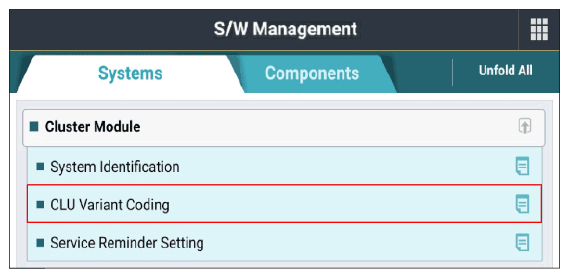

G13806804Courtesy of KIA MOTORS AMERICA, INC.

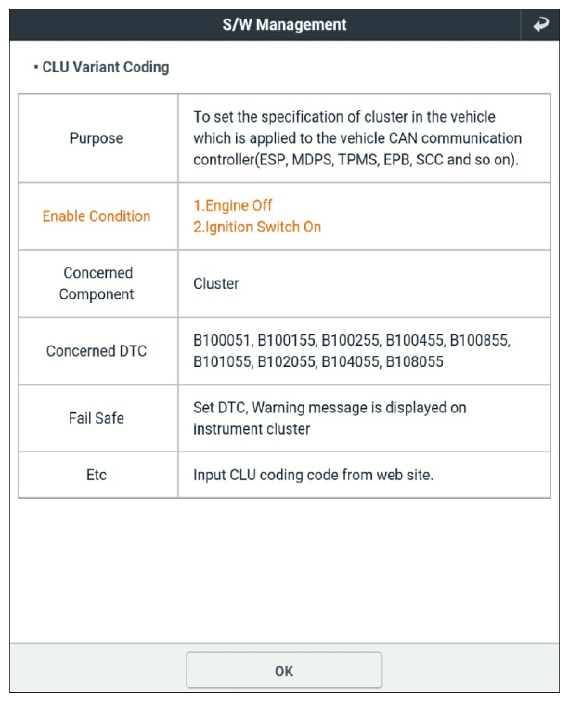

G13806805Courtesy of KIA MOTORS AMERICA, INC.
G13806806Courtesy of KIA MOTORS AMERICA, INC.

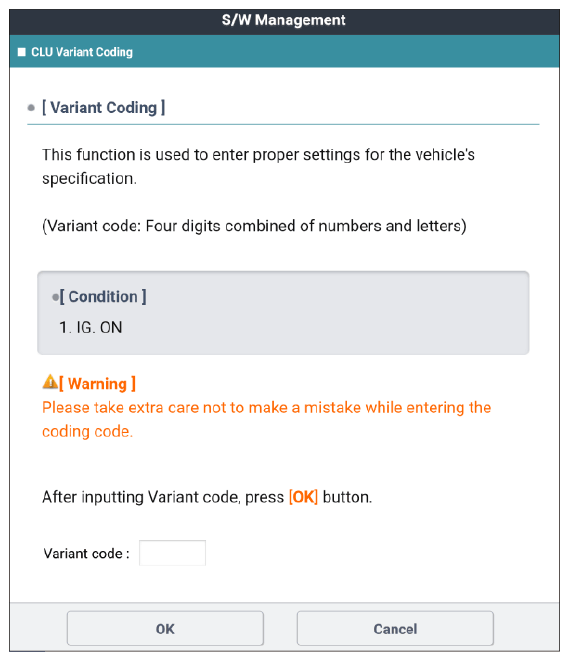

G13806807Courtesy of KIA MOTORS AMERICA, INC.

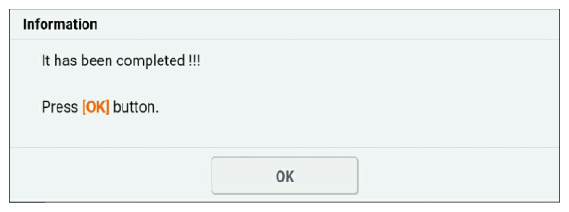

G13806808Courtesy of KIA MOTORS AMERICA, INC.
