Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

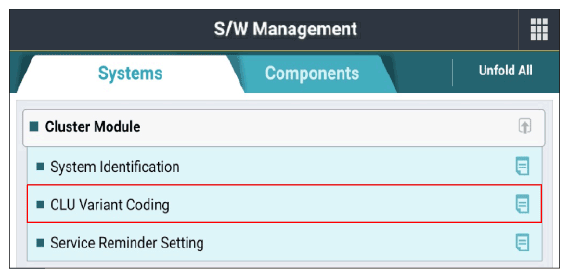

G13806822Courtesy of KIA MOTORS AMERICA, INC.

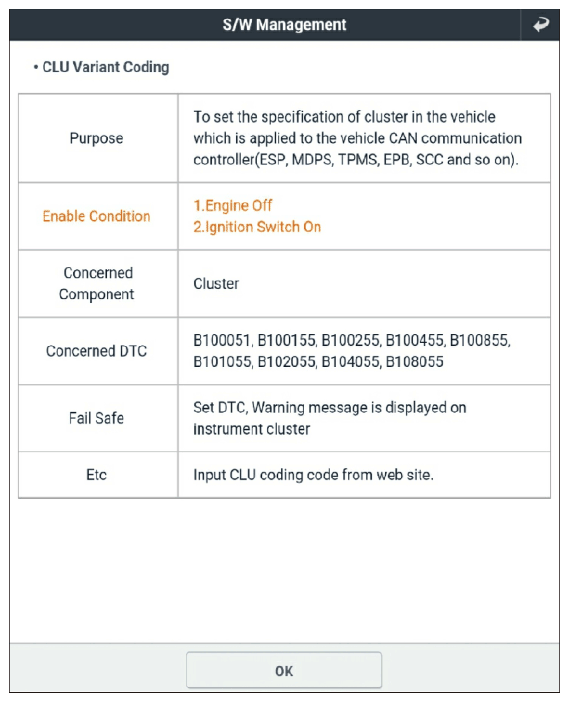

G13806823Courtesy of KIA MOTORS AMERICA, INC.

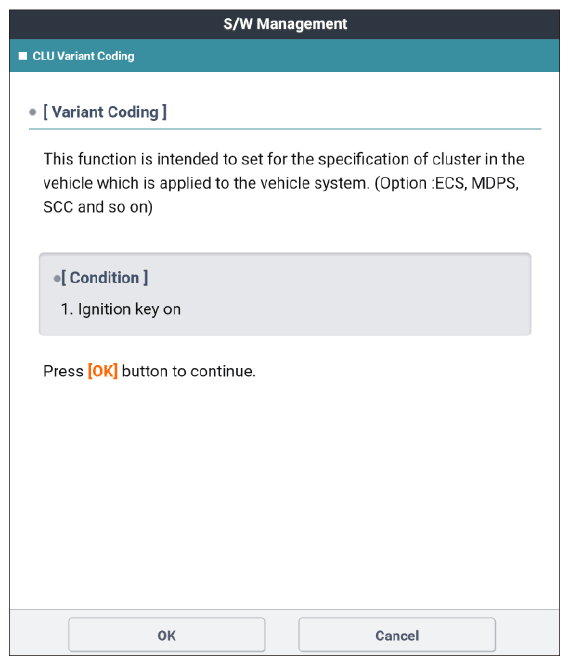

G13806824Courtesy of KIA MOTORS AMERICA, INC.

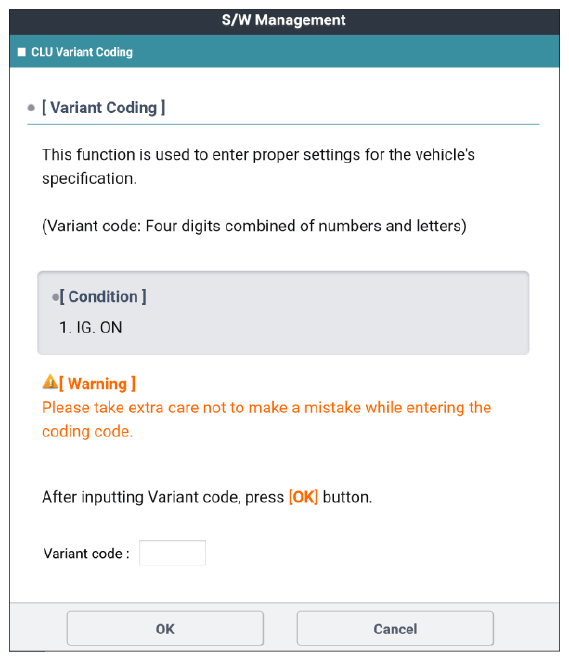

G13806825Courtesy of KIA MOTORS AMERICA, INC.

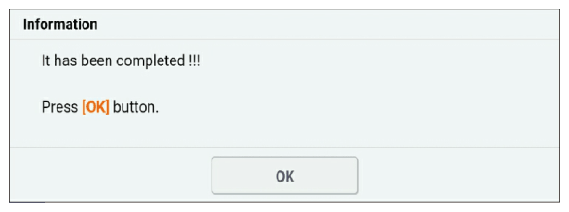

G13806826Courtesy of KIA MOTORS AMERICA, INC.
