Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

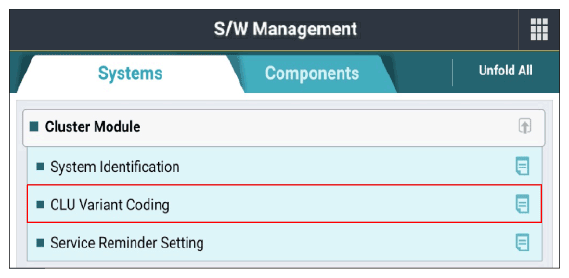

G13806840Courtesy of KIA MOTORS AMERICA, INC.

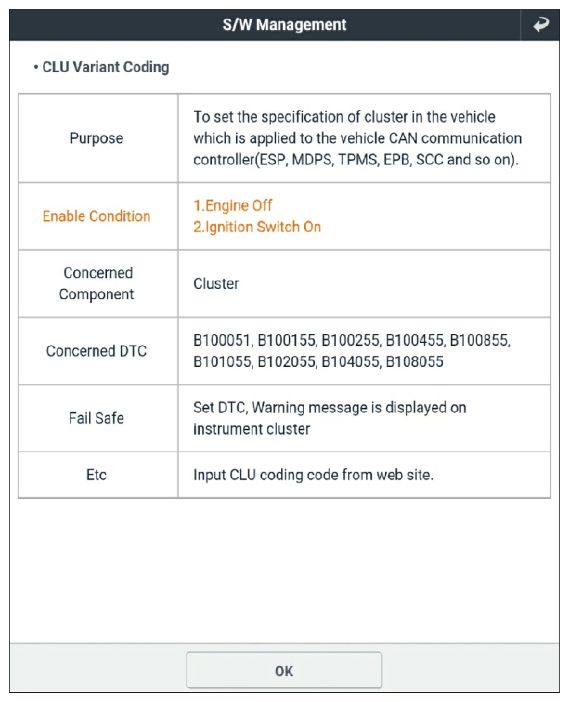

G13806841Courtesy of KIA MOTORS AMERICA, INC.

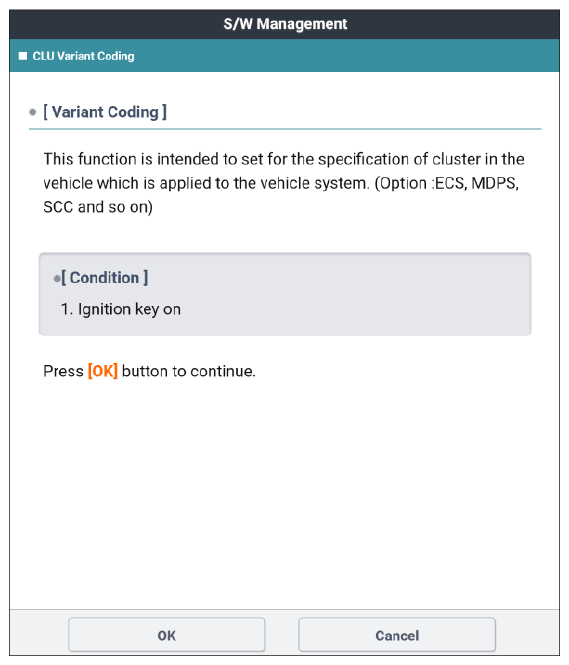

G13806842Courtesy of KIA MOTORS AMERICA, INC.

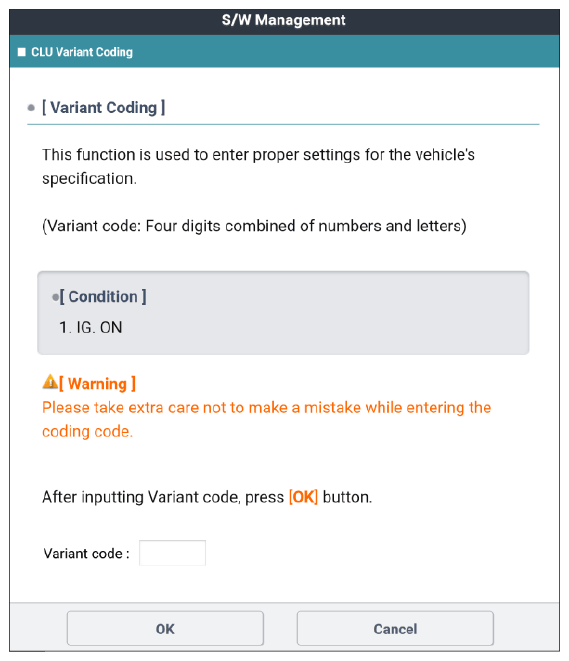

G13806843Courtesy of KIA MOTORS AMERICA, INC.

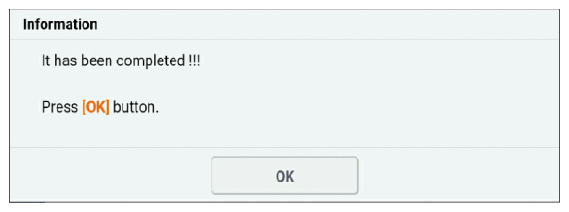

G13806844Courtesy of KIA MOTORS AMERICA, INC.
