Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

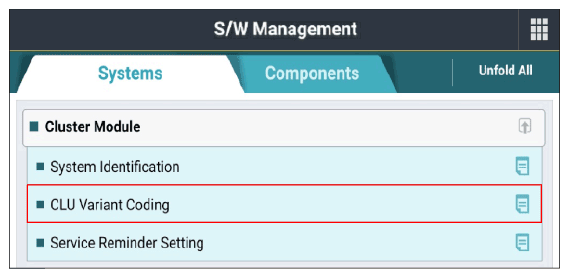

G13806858Courtesy of KIA MOTORS AMERICA, INC.

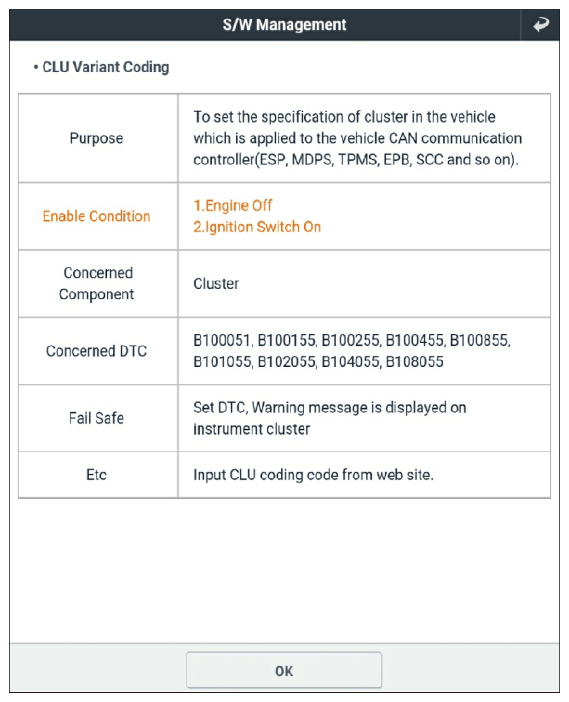

G13806859Courtesy of KIA MOTORS AMERICA, INC.

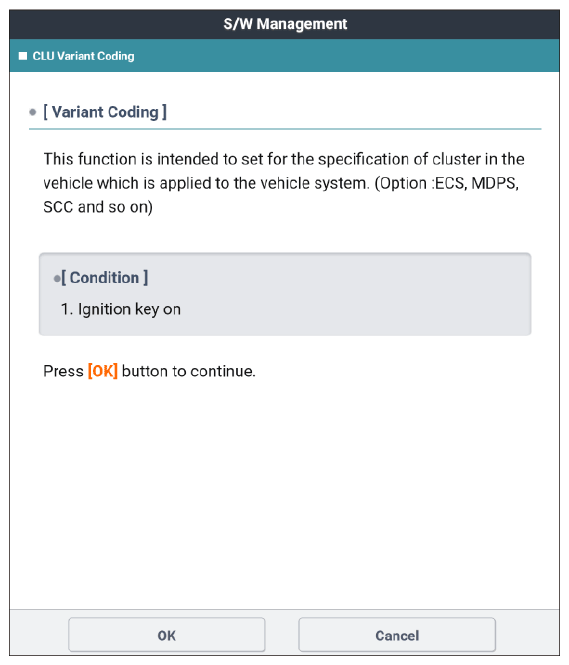

G13806860Courtesy of KIA MOTORS AMERICA, INC.

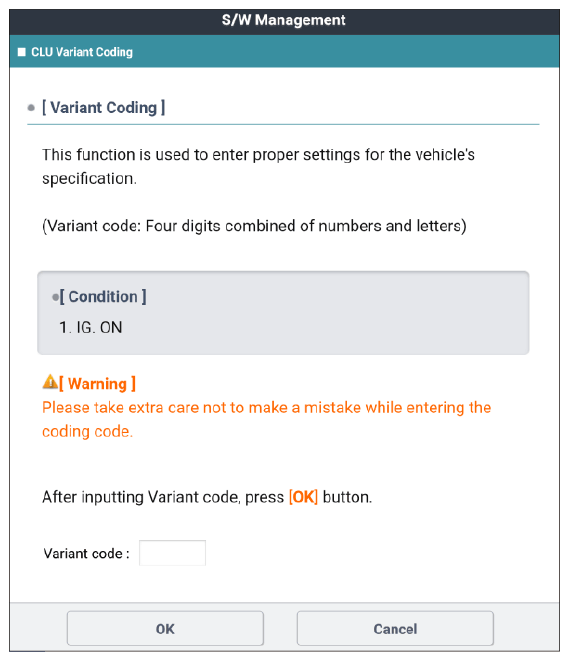

G13806861Courtesy of KIA MOTORS AMERICA, INC.

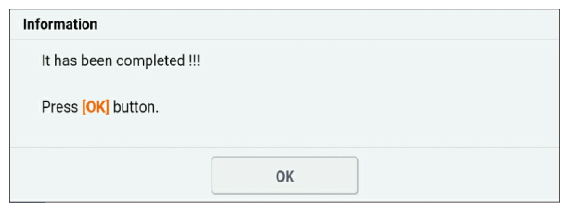

G13806862Courtesy of KIA MOTORS AMERICA, INC.
