Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

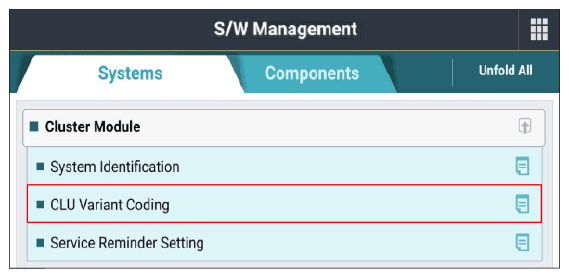

G13806876Courtesy of KIA MOTORS AMERICA, INC.

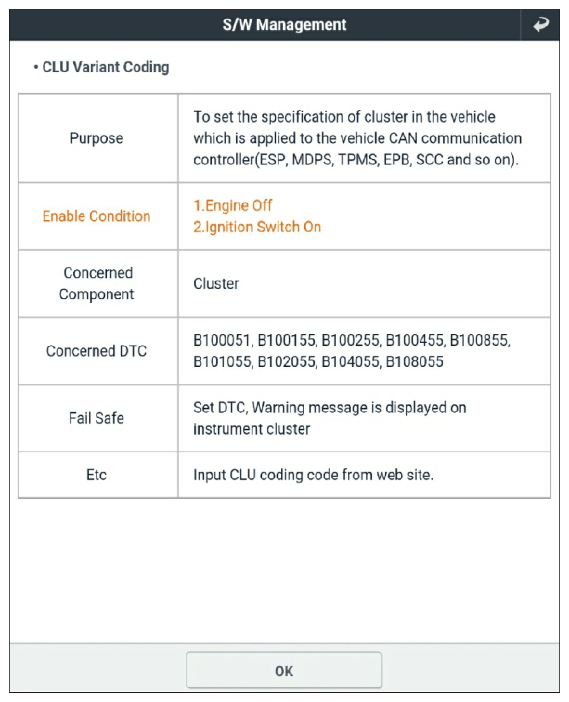

G13806877Courtesy of KIA MOTORS AMERICA, INC.

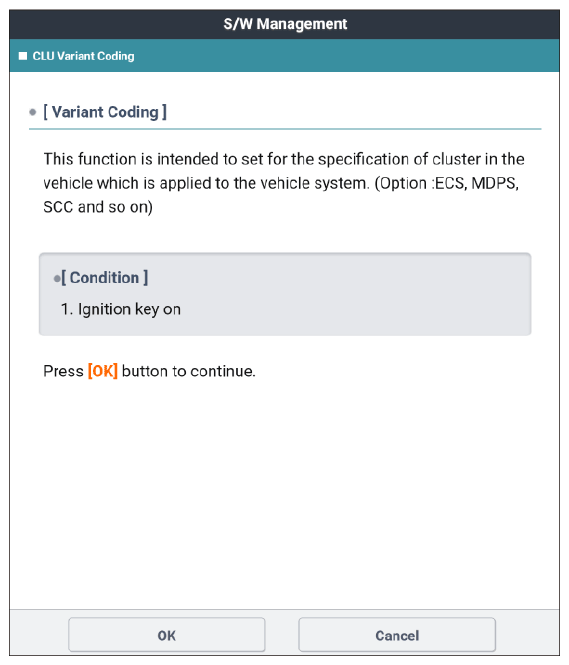

G13806878Courtesy of KIA MOTORS AMERICA, INC.

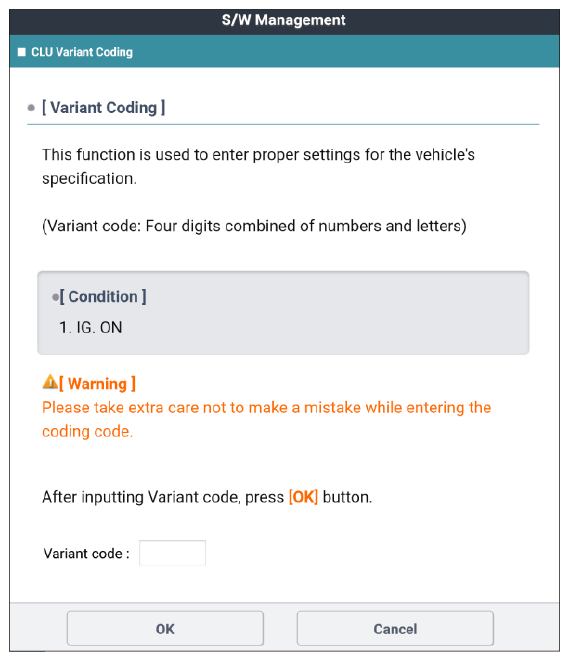

G13806879Courtesy of KIA MOTORS AMERICA, INC.

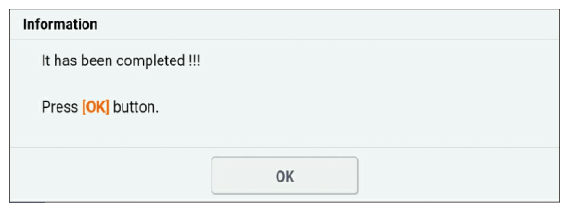

G13806880Courtesy of KIA MOTORS AMERICA, INC.
