Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

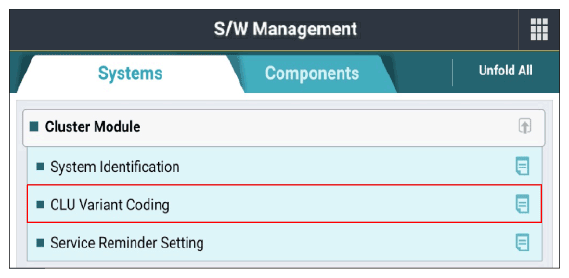

G13806894Courtesy of KIA MOTORS AMERICA, INC.

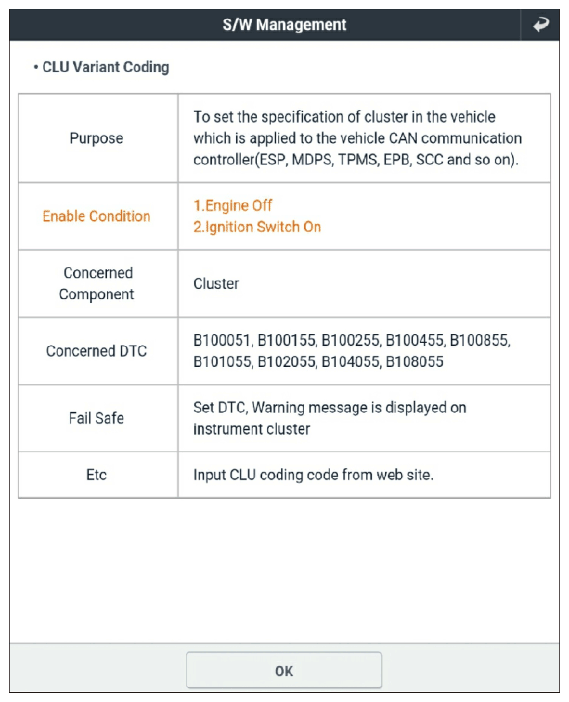

G13806895Courtesy of KIA MOTORS AMERICA, INC.

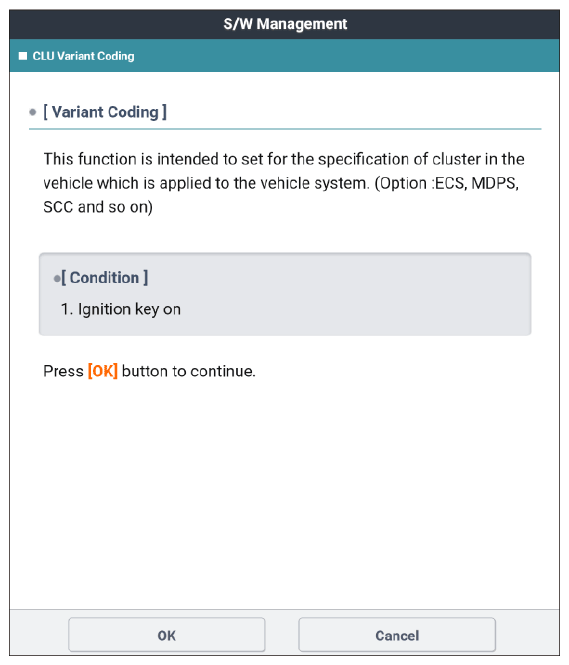

G13806896Courtesy of KIA MOTORS AMERICA, INC.

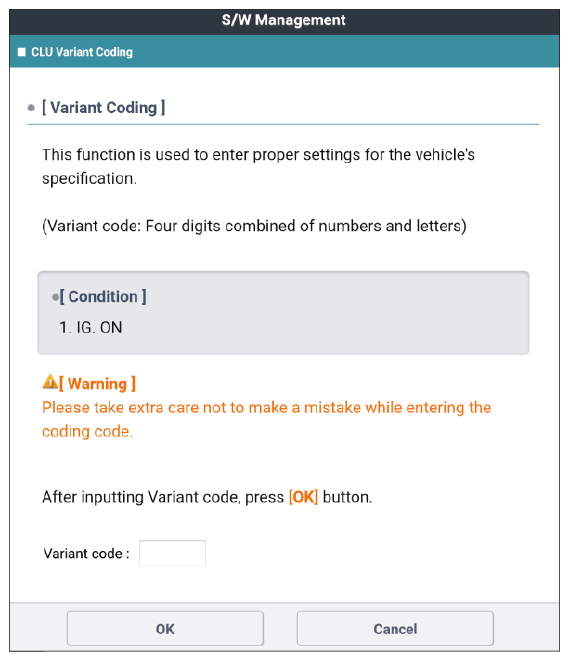

G13806897Courtesy of KIA MOTORS AMERICA, INC.

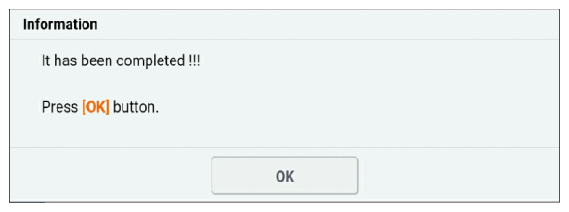

G13806898Courtesy of KIA MOTORS AMERICA, INC.
