Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

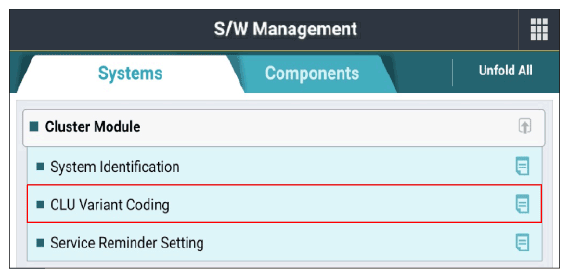

G13806912Courtesy of KIA MOTORS AMERICA, INC.

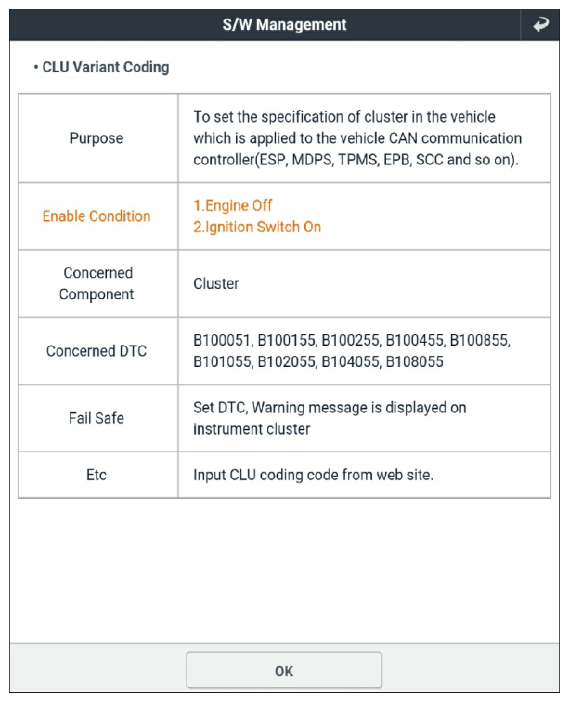

G13806913Courtesy of KIA MOTORS AMERICA, INC.

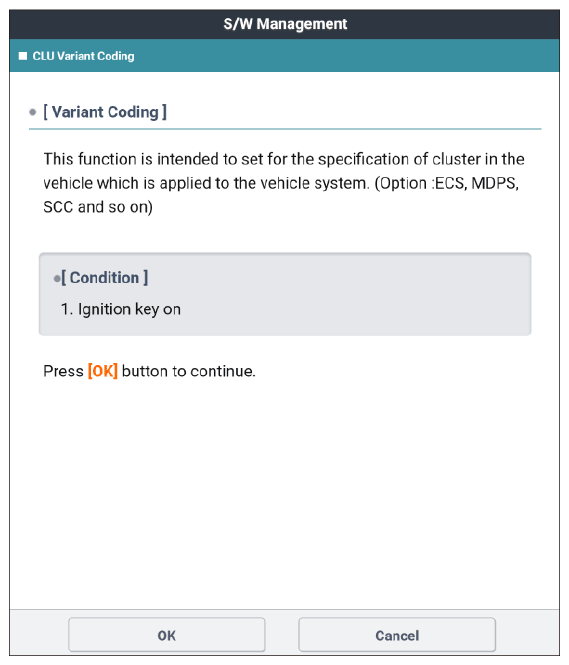

G13806914Courtesy of KIA MOTORS AMERICA, INC.

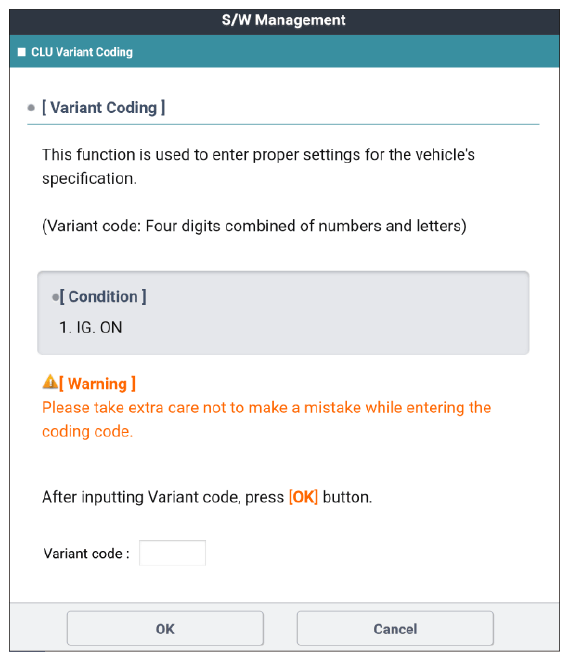

G13806915Courtesy of KIA MOTORS AMERICA, INC.

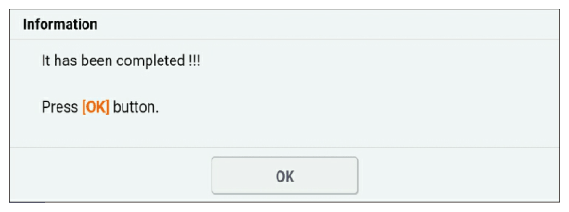

G13806916Courtesy of KIA MOTORS AMERICA, INC.
